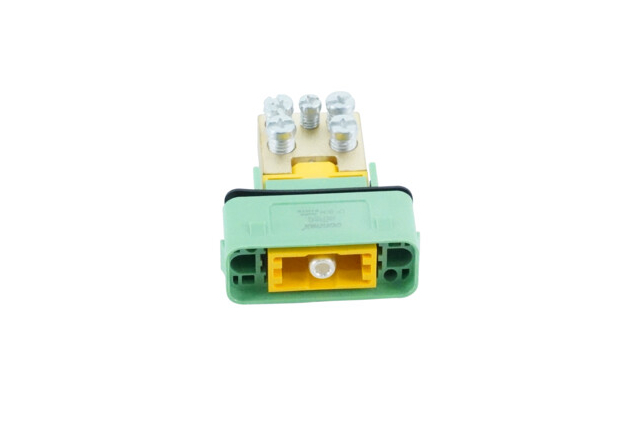

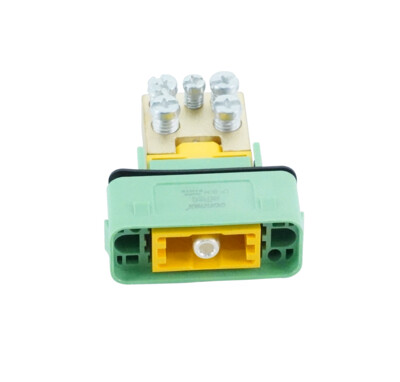

Contrik CP-PMB cPot Recessed Male PE Terminal Block 2x35/1x25mm²

Contrik CP-PMB cPot Recessed Male Connector

The Contrik CP-PMB is a recessed male cPot connector designed to integrate an equipotential bonding connection into an equipment enclosure, device housing or control panel. This barcode represents one CP-PMB connector.

Key Features

• Panel-mounted male PE connector
• Terminal block connections: 2 x 35mm² and 1 x 25mm²
• IP65 protection when correctly mated
• Latch-lock connection system
• Rated for more than 500 mating cycles
• Robust polycarbonate housing
• Copper-alloy contact
• UL94-V0 connector material compatibility

Product Details

• Brand: Contrik
• Model: CP-PMB
• Manufacturer order number: 1027374
• EAN: 4250171430182
• Pack quantity: 1 connector
• Conductor cross-section: 16mm² and 25mm²
• Contact resistance: ≤0.3mΩ
• Protection: IP65 when mated
• Operating temperature: -40°C to +55°C
• Dimensions: approximately 54 x 22 x 45mm

Directions

Install the connector into a suitable equipment enclosure or panel and connect it to the protective equipotential bonding conductors using the integrated terminal block. Installation and testing should be carried out by a suitably qualified person in accordance with applicable electrical regulations.
